Database Explorer

Overview

In the Database Explorer, you can work with databases and DDL data sources. You can view and modify data structures in your databases and perform other associated tasks.

The available data sources are shown as a tree of data sources, schemas, tables, and so on.

the Database Explorer

If no data sources are currently defined, use the New command Alt+Insert to create a data source and connect to a database. For more information about data sources, refer to Data sources topic.

Once DataGrip is connected to a database, Database Explorer will display the introspected database objects. For more information about database tree viewing options, refer to View Options chapter. For more information about working with database objects in DataGrip, refer to the corresponding object topics.

Most of the functions in this window are accessed by using the toolbar icons or context menu commands. Many of the commands have keyboard shortcuts.

The following video presents a short overview of the Database Explorer tool window.

Browse your databases

Find database objects

  • To search for a database object in Database Explorer, start typing the object's name. Matching database objects will be highlighted.

    To toggle the speed search filter, click the Speed Search Filter icon Speed Search Filter. To move between several highlighted items, press Up and Down.

For more information about speed search, refer to Speed search.

Filter database objects

You can filter database objects and hide the objects you do not need to see. To do this, use either the object filter in data source settings or the tool window item filter.

  • Object filter in data source settings

    For example, you can filter out all tables with names starting with payment_.

    1. To filter database objects, open Data Sources and Drivers dialog (Ctrl+Alt+Shift+S) .

    2. On the left pane of the dialog, select the data source in which you want to filter database objects.

    3. In the Schemas tab, navigate to Object filter and enter the pattern. In our example, table:-payment_.*.

    Filtering out tables in the data source settings dialog

  • Item filter in the tool window view options

    1. In the toolbar, click the View Options icon View Options and select the Filter icon Filter.

    2. Select or deselect the items that you want to see or hide.

    3. To confirm the selection, click any area in the Database Explorer.

    Only views and tables are selected to view in Database Explorer

Show more schemas

Database Explorer displays introspected databases and schemas of your data sources. For a database or schema to be shown in the tree, select it in the schema selector of a data source.

For more information about introspection, refer to Glossary.

  • To see more schemas under your new data source node, click the N of M button and select the ones you need. DataGrip will introspect and show them.

    Select databases and schemas to introspect and display in Database Explorer

    For more information about displaying schemas in Database Explorer, refer to the Show all databases or schemas tutorial.

View a group in a table

  • In the Database Explorer, click a node that groups database objects, and press F4.

    For more information about toggling groups view, refer to Customize the view of objects.

    View the contents of a node

View quick documentation

  • Quick documentation displays information about the item. To view the information, select the item and press Ctrl+Q.

    Table information size in Quick Documentation popup in Database Explorer

Scroll to the object opened in editor

  • To scroll to a database object in the database tree, place the caret over the object's name in code editor. Then, in Database Explorer tool window toolbar, click Scroll from Editor Scroll from Editor.

    The corresponding nodes will open and the object will be highlighted in the database tree.

Use folders in the tree

Database Explorer allows creating folders and grouping data sources in them. You can also move one folder to another and create subfolders. Folders configuration is stored in .idea/db-forest-config.xml. You can add this configuration file to the VCS to share it with your colleagues, or you can also ignore it in the VCS.

Move tree items to folders

  • To group data sources in a folder or move one folder to another, right-click the item and select Move | To Folder.

    In the Move to Folder popup, select the folder you want to move the item to. You can move the item to an existing folder, create a new folder and move the item in it, or move the item to the top level.

For more information about grouping data sources, refer to Group data sources in folders.

Move an item to a folder

Reorder folders and data sources

To move folders and data sources in the tree, use the Move context menu actions and corresponding shortcuts.

  • To move an item up and down the list, select Move | Up and Move | Down. Alternatively, press Alt+Shift+Up and Alt+Shift+Down.

  • To move an item to the highest level of the tree, select Move | To Top Level.

Reorder folders in Database Explorer

Configure the tree view

Customize the view of objects

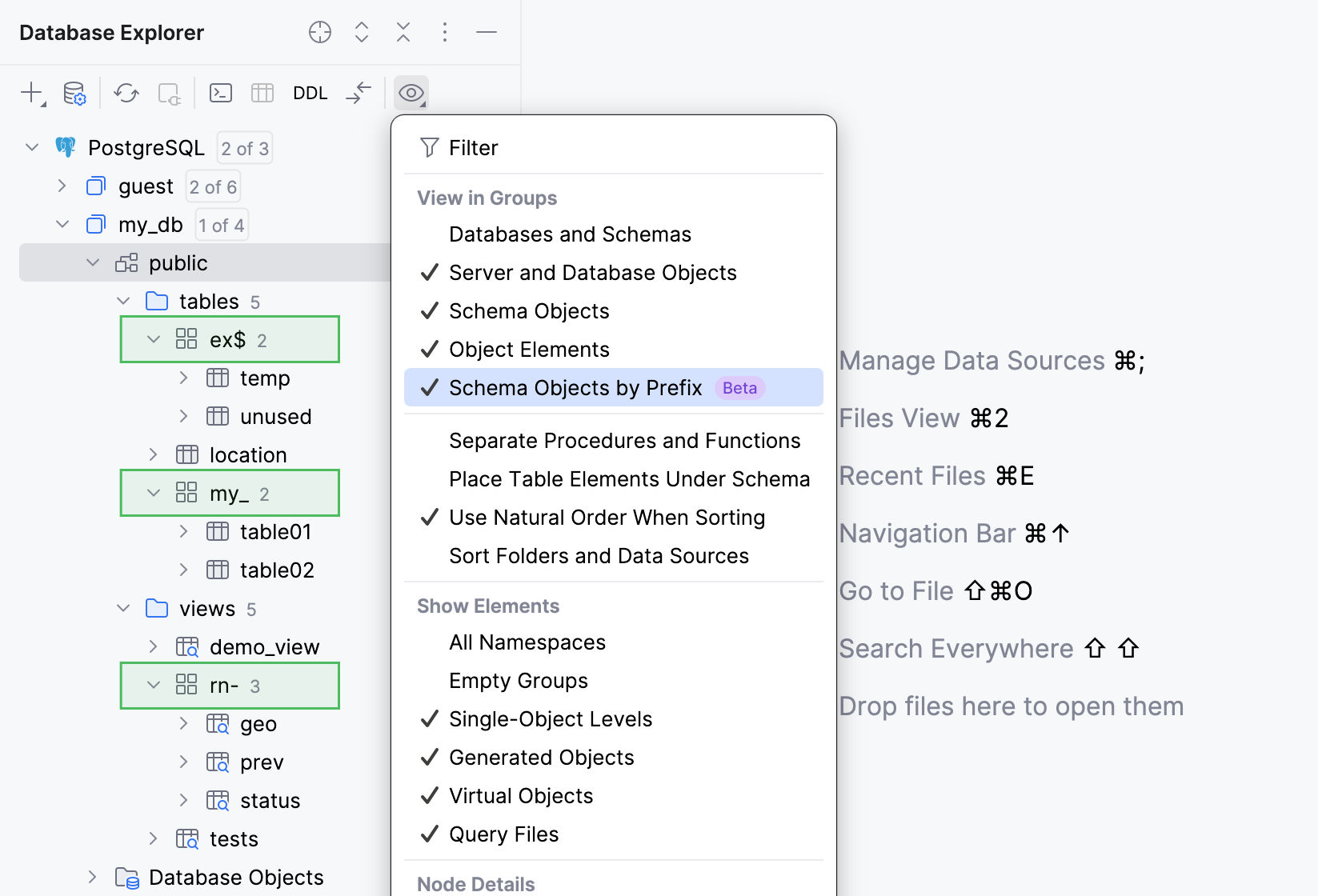

  • To group, enable, or sort data sources, click the View Options icon View Options on the Database Explorer toolbar and select the necessary options.

    In the Database Explorer, the view of database objects tree changes instantly.

    For more information about the database tree view options, refer to View Options.

    View Options menu items in Database Explorer

Toggle groups for non-major objects

  • By default, non-major objects are grouped in the Database Objects and Server Objects nodes. To toggle this grouping, click the View Options icon View Options in the toolbar, navigate to View in Groups and click Database and Server Objects.

For more information about view options, refer to the Database Explorer topic.

  • Grouping enabled

    Grouping of non-major objects is enabled

  • Grouping disabled

    Grouping of non-major objects is disabled

Assign colors to data sources and database objects

To have better differentiation between databases, you can assign a color to a data source. The color can be enabled in Database Explorer, code editor and data editor tab headers, code editors and grids, and in toolbars.

  1. In Database Explorer, right-click the data source and navigate to Tools | Set Color.

  2. In the Database Color Settings dialog, select the color that you want to assign and where to enable it.

    For more information about the settings in this dialog, refer to the Database Color Settings dialog reference topic.

  3. Apply the changes and close the dialog.

For more information about assigning color to a data source in its settings dialog, refer to Assign a color to a data source.

Assigning a color to a data source
Assigning a color to code editors and grids

Show tree indent guides

In the Database Explorer, you can display vertical lines that mark indent levels and help you better understand the hierarchy of the objects in your databases.

  1. Press Ctrl+Alt+S to open settings and then select Appearance & Behavior | Appearance.

  2. In the Tree Views section, enable the Show indent guides option.

  • Tree indent guides are enabled

    The Show tree indent guides setting is enabled

  • Tree indent guides are disabled

    The Show tree indent guides setting is disabled

Show comments and last refresh date

You can view comments and last refresh timestamps for the objects in the database tree.

  • In the toolbar, click the View Options icon View Options, navigate to Node Details and select Comments and Schema Refresh Time.

  • Enabled

    Object comments and schema refresh time are enabled

  • Disabled

    Object comments and schema refresh time are disabled

Productivity tips

Create a quick table backup

  • You can create a quick table backup before any significant data manipulation. To do this, drag the table to the original schema and create a copy of the table in Import dialog.

For more information about the dialog, refer to Import dialog.

Reference info

Header toolbar

You can right-click the window header and use the context menu to configure its viewing mode, associate the window with a different tool window bar, or resize and hide the window.

You can also use the toolbar buttons:

Item

Shortcut

Description

Scroll from Editor

Automatically sets the focus on the object name in the Database Explorer when the editor area is in focus.

For example, if you have opened a table, you can click the Scroll from Editor button (Scroll from Editor) and the corresponding table will be selected in the Database Explorer.

The icon is not available if the Autoscroll from Editor option is currently on.

Expand All

Ctrl+NumPad +

Expand all nodes in the current view.

Collapse all

Ctrl+NumPad -

Collapse all expanded nodes in the current view.

the Options icon

The context menu that appears by right-clicking the header or clicking the Options button the Options icon provides settings for project views, viewing modes, as well as for switching between the views, resizing the tool window, and more.

For more information about the settings, refer to the Header context menu chapter.

Hide tool window

Shift+Escape

Hide the tool window .

To hide all the tool windows, press Ctrl+Shift+F12.

Header context menu

Item

Description

Autoscroll from Editor

Makes the database object, that is opened in the editor, automatically selected in the Database Explorer. Disables the Scroll from Editor Scroll from Editor setting.

Show Query Console Toolbar

Display the toolbar in the query file tabs.

the Speed Search icon Speed search

Opens the input field of the Speed Search in tool windows feature.

Show Toolbar

Display the toolbar in the Database Explorer.

View Mode

This option lets you control general appearance and behavior of the tool window. For full information, refer to Tool window view modes.

Move to

To associate the tool window with a different tool window bar, select this command, and then select the destination tool window bar (Top, Left, Bottom or Right). For full information, refer to the Move tool windows chapter.

Resize

To resize the tool window by moving one of its borders, select this command, and then select the necessary Stretch to option.

Note that this command is not available for the floating mode.

Remove from Sidebar

This command hides the tool window, removes the button for showing and hiding the tool window, and removes the tool window from the quick access menu (tb shown or tb hidden).

To open the tool window again (and restore the associated features), use the main menu: View | Tool Windows | <Window Name> or press Alt+2.

Help

This command opens the description of the Files tool window in the DataGrip online help.

Toolbar

Database Explorer toolbar
the New icon

New

Create a new data source, query file, or a driver.

Available for: Data sources and database objects.

the Data Source Properties icon

Data Source PropertiesCtrl+Alt+Shift+S

Open the Data Sources and Drivers dialog to manage your data sources and their settings.

Available for: All node types.

the Refresh icon

Refresh Ctrl+F5

Update the view of the selected element (that is to synchronize the view of the element with its actual state in the database).

See also, Data Sources and Drivers dialog.

Available for: Data sources and their elements.

the Deactivate icon

Deactivate Ctrl+F2

Close the database connection for the selected data source or data sources.

Available for: Data sources with active connections and their elements.

the Jump to Query File icon

Jump to Query Console Ctrl+Shift+F10

Open the list of query files for the selected data source.

Available for: Data sources and their elements.

the Edit Data icon

Edit Data F4

Open a table view of the object in the data editor. This option works for tables, views, and materialized views.

Available for: Corresponding elements in data sources.

DDL

Go to DDL Ctrl+B

Open the DDL script of the selected object.

For example, if you press this shortcut on a table's name in the SELECT statement, you will see the DDL of this table (the CREATE TABLE statement).

Go to Declaration

Available for: Corresponding elements in data sources.

the Compare Structure icon

Compare Structure Ctrl+D

Compare the structure of two database objects in the Migration dialog. The comparison results are shown in the Diff Viewer.

Available for: Two selected database objects of the same kind.

View Options

Open the list of database object tree viewing options, including the item filter. For more information about the options, refer to the View Options chapter.

Available for: All items.

View Options

The view options, generally, define what is shown in the tool window and how. To view or change these options, click View Options on the toolbar.

View Options menu items in Database Explorer
the Filter icon Filter

Open a list of database objects that you can filter. The list of database objects depends on the selected database. To see a full list of available database objects and their icons, go to Icons for data sources and their elements.

The green dot in the corner of filter icon indicates that the filter is on and some objects are filtered out.

Everything is filtered out except views and tables

Only views and tables are selected to view in Database Explorer

Nothing is filtered out

All items are selected to view in Database Explorer

View in Groups | Databases and Schemas

Displays folders for databases and schemas.

View in Groups | Server and Database Objects

Displays folders for server and database objects, Server Objects and Database Objects correspondingly. This setting concerns users, roles, tablespaces, modules, foreign data wrappers, and other rarely used objects.

View in Groups | Object Elements

This option defines how table elements are shown.

  • When on, there are separate nodes for columns, indexes, primary and foreign key constraints, and triggers (shown as folders). The elements appear in the corresponding groups.

  • When off, there is no such grouping and, generally, only columns are shown for tables.

View in Groups | Schema Objects

Defines how schema elements are shown.

  • When on, there are separate nodes for tables, views, and stored routines (shown as folders). Tables, views and routines (procedures and functions) are shown as elements of the corresponding groups.

  • When off, there is no explicit grouping for tables, views, and routines. Tables and views are followed by procedures and functions.

View in Groups | Separate Procedures and Functions

In Microsoft SQL Server, Oracle, and PostgreSQL, separates procedures and functions into different folders.

View in Groups | Place Constraints and Similar Objects under Schema

Display nodes for object names that exist in a schema namespace. For example, nodes for keys, CHECK constraints, indexes, triggers, rules, and other objects.

You can use this option in the following situations:

  • To find an object inside a schema with the help of a quick search.

  • To see the columns under the table node. To do this, turn off the Empty Groups.

View in Groups | Sort Alphabetically

Order database objects alphabetically. When the option is disabled, the natural sort order is applied.

Show Elements | All Namespaces

Show all databases and schemes even if they are not selected for introspection.

  • When the All Namespaces option is disabled, the databases that are not selected for introspection do not appear in the Database Explorer.

  • When the All Namespaces option is enabled, the databases that are not selected for introspection are displayed in the Database Explorer.

Show Elements | Empty Groups

If the Schema Objects or Object Elements options are selected, you can select to show or hide the categories that contain no elements.

Show Elements | Intermediate Nodes

Shows or hides parent nodes only when you do not have other objects on the same level with a parent.

Show Elements | Generated Objects

For Oracle, shows or hides auto-generated objects in the tree. It concerns the following objects:

  • Materialized view logs

  • The underlying tables for materialized views

  • Secondary tables

Show Elements | Virtual Objects

Show or hides the following objects:

  • Virtual foreign keys

  • Virtual views

  • Virtual columns

Node details | Comments

Display comments for database objects.

Node details | Schema Refresh Time

Display the local date and time of the last performed introspection for schemas.

The feature is currently not supported for ClickHouse, Redis, Apache Cassandra, and Apache Hive.

Context menu

Context-menu actions appear when you right-click an object in the Database Explorer.

the Properties icon PropertiesCtrl+Alt+Shift+S

Open the Data Sources and Drivers dialog to manage your data sources and their settings.

Available for: Data source and DDL data source nodes.

the New icon New

Create a new data source, role, database, schema, query file, table, column, index, a primary, or a foreign key. The list of options depends on which element is currently selected.

Available for: Data sources and database objects.

Copy/Paste | Copy Data Source Ctrl+C

Copy the XML code snippet with connection settings to the clipboard.

Available for: Data source nodes.

Copy/Paste | Copy Reference Ctrl+Alt+Shift+C

Copy the fully qualified name of the selected item to the clipboard.

Available for: Data sources and their elements.

Copy/Paste | Duplicate Ctrl+D

Create a copy of the selected data source. Specify the properties of the data source in the Data Sources and Drivers dialog that opens.

Available for: Data source and DDL data source nodes.

the Edit Data icon Edit Data F4

Open a table view of the object in the data editor. This option works for tables, views, and materialized views.

Available for: Corresponding elements in data sources.

Move to Folder F6

Move the selected data source to a folder. If no folders exist yet, create the first one in the Move to Folder popup that appears.

For more information about grouping data sources, refer to Group data sources in folders.

Available for: Data source and DDL data source nodes.

the Refresh icon Refresh Ctrl+F5

Update the view of the selected element (that is to synchronize the view of the element with its actual state in the database).

See also, Data Sources and Drivers dialog.

Available for: Data sources and their elements.

the Deactivate icon Deactivate Ctrl+F2

Close the database connection for the selected data source or data sources.

Available for: Data sources with active connections and their elements.

Quick Documentation Ctrl+Q

View basic information about the selected element.

To close the documentation popup, press Escape.

Available for: Data sources and their elements.

For more information about quick documentation, refer to quick documentation.

the Compare Structure icon Compare Structure With Ctrl+D

Compare the structure of two database objects in the Migration dialog. The comparison results are shown in the Diff Viewer.

Available for: Two selected database objects of the same kind.

Navigation | Go to DDL Ctrl+B

Open the DDL script of the selected object.

For example, if you press this shortcut on a table's name in the SELECT statement, you will see the DDL of this table (the CREATE TABLE statement).

Go to Declaration

Available for: Corresponding elements in data sources.

Navigation | Jump to Query Console Ctrl+Shift+F10

Open the list of query files for the selected data source.

Available for: Data sources and their elements.

Run Function or Run Procedure

Run the selected function or procedure.

Available for: Data source elements: functions, procedures.

Introspection Level

Change the introspection level either for the whole database or for a particular schema. Children inherit a level that is set for a parent.

Available for: Data Source nodes.

SQL Scripts | SQL Generator Ctrl+Alt+G

Generate data definition structures for database objects. For example, you can generate DDL files for a single table or for all the tables in the schema. Also, you can customize generation settings. For example, you can set what syntax to use for table creation: CREATE TABLE or CREATE TABLE IF NOT EXISTS.

Available for: Data source elements.

For more information about using SQL Generator, refer to the Generate DDL definitions for database objects and Change output settings of the SQL Generator chapters.

SQL Scripts | Request and Copy Original DDL

Requests the DBMS server to get or generate a source text for this object, receives this text, and puts it to the clipboard.

Available for: Data sources and their elements.

SQL Scripts | Generate DDL to Clipboard Ctrl+Alt+Shift+G

Generate a DDL of the object and copy it to the clipboard.

Available for: Data sources and their elements.

SQL Scripts | Generate DDL to Query Console Ctrl+Alt+Shift+B

Generate a DDL of the object and copy it to the query file.

Available for: Data sources and their elements.

Object Actions | Rename Shift+F6

Rename the selected item. Specify the new name in the dialog that opens.

Available for: Data sources and their elements.

Object Actions | Enable triggers/constraints

Enable triggers and constraints for the selected table.

Available for: Data source elements: tables.

Object Actions | Disable triggers/constraints

Disable triggers and constraints for the selected table.

Available for: Data source elements: tables.

Object Actions | Modify Comment

Modify the database object comment in the Modify Comment dialog.

Object Actions | Modify Grants

Modify the grants of a database object in the Modify Grants of <object_name> dialog.

Object Actions | Truncate…

Remove all the rows in the selected table.

Available for: Data source elements: tables.

Object Actions | Drop or Object Actions | Remove Data Source Delete

Remove the selected item.

Available for: Data sources and their elements.

Tools | Manage Shown Schemas

Open a popup with available schemas for the current data source.

See also, Show and hide schemas.

Available for: Data sources and their elements.

Tools | Full-text Search Shift+Ctrl+Alt+F

Search for data in your databases or a group of databases without knowing the data's exact location.

Available for: Data sources and their elements.

For more information about the full-text search, refer to Full-text search in databases.

Tools | Set Color

Open the Database Color Settings dialog to set or change the color for the selected element or elements.

Available for: Data sources and their elements.

Tools | Add Bookmark F11

Add the selected item to bookmarks.

Available for: Data sources and their elements.

Tools | Scripted Extensions | Generate POJOs.clj

Generate a Java entity class for the selected table. In the dialog that opens, specify the directory in which the JAVA class file should be generated.

Available for: Data sources and their elements.

Tools | Scripted Extensions | Go To Scripts Directory

Switch to the directory where theGenerate POJOs.cljexample script file is located.

Available for: Data sources and their elements.

Import/Export | Export Data to File

Save data for the selected tables and views in files. Select the output format (for example, SQL Inserts, Tab-separated (TSV), JSON-Clojure.json.clj).

Available for: Data source elements: tables and views.

Import/Export | Import Data from File(s)…

Import a text file containing delimiter-separated values (CSV, TSV, and so on) into your database.

If a schema is currently selected, DataGrip will create a new table for the data that you are importing. If a table is selected, DataGrip will try to add the data to the selected table.

Available for: Database tables.

Import/Export | Copy Table to F5

Create a copy of the selected table. You can create a copy in a different scheme or data source. For example, you can copy the actor table from MySQL to PostgreSQL.

Available for: Database tables and views.

Import/Export | Dump to DDL Data Source

Create your DDL data source by dumping a regular data source to a root/repository folder.

Available for: Data sources and their elements.

Import/Export | Export with 'mysqldump' or Import/Export | Export with 'pg_dump'

Run mysqldump or pg_dump for the selected items. mysqldump and pg_dump are native MySQL and PostgreSQL tools. They are not integrated into DataGrip. You can read about them at dev.mysql.com and postgresql.org.

Available for: Data source nodes.

Import/Export | Restore with 'mysql' or Import/Export | Restore with 'psql' or Restore

Run mysql, pg_restore, or psql to restore a data dump. These tools are native for MySQL and PostgreSQL. They are not integrated into DataGrip. You can read about them at dev.mysql.com and postgresql.org.

Available for: Data source nodes.

Diagrams | Show Diagram Ctrl+Alt+Shift+U

View a UML class diagram for the selected data source or table in a separate editor tab.

Available for: Data sources and their elements.

Diagrams | Show Diagram Popup Ctrl+Alt+U

View a UML class diagram for the selected data source or table in a popup.

Available for: Data sources and their elements.

Diagnostics | Dump Metadata Model

Generate a diagnostic representation of the database in a DataGrip internal format. This information might be helpful for the support team if some database objects exist in the database but do not show up in the Database Explorer.

Available for: Data sources and their elements.

Diagnostics | Generate Introspector Diagnostic Files

Generate three files that include information about the following:

  • dataSource.txt: the data source.

  • introspector.txt: a module that was used to load the metadata from the database.

  • model.xml: a part of the database model.

This information is helpful when introspection works incorrectly.

For more information about using this action, refer to Database objects list in the database tree is not accurate.

Available for: Data sources and their elements.

Diagnostics | Show JDBC Log Settings

Open the JDBC Log Setting dialog to configure the JDBC driver log settings.

Available for: Data sources and their elements.

Diagnostics | Force Refresh Ctrl+Shift+F5

Delete the data source information from cache and load it again. This action is available on the data source node only.

Available for: Data source nodes.

Diagnostics | Forget This Schema Cache

Delete the information that DataGrip has accumulated about your database. This action is available on the data source node only.

Use this command when you experience issues like wrong display of data structures or errors during synchronization.

To check if this has eliminated the problem, use the Synchronize command.

Available for: Data source nodes.

Diagnostics | Diagnostic Mode

Enables the diagnostic mode where DataGrip writes the introspection log.

You can access the log file by clicking the link in the Diagnostic log started and Diagnostic log stopped notification popups that appear once you enable and disable the mode.

Notification about the log file

For more information about using this action, refer to the Loading of database objects takes too much time topic.

Icons

Data sources and their elements

Icon

Description

Access Method

Access Method

Aggregate

Aggregate

Alias Type

Alias Type

Argument

Argument

Body

Body

Check

Check

Cluster

Cluster

Collation

Collation

Collection Type

Collection Type

Column

Column.

For more information about column icon combinations, refer to Possible icon combinations for columns.

Data File

Data File

Database

Database

Read-only

Read-only status

the DDL data source icon

DDL data source

Default

Default

Exception

Exception

Extension

Extension

External Schema

External Schema

Foreign Data Wrapper

Foreign Data Wrapper

Foreign Key

Foreign Key

Foreign Table

Foreign Table

Index

Index

Key

Key

Materialized Log

Materialized Log

Materialized View

Materialized View

Object Attribute

Object Attribute

Object Type

Object Type

Operator

Operator

Package

Package

Primary Key

Primary key

Projection

Projection

Data source

Data sources

Role

Role

Routine

Routine

Rule

Rule

Scheduled Event

Scheduled Event

Schema

Schema

Sequence

Sequence

Server

Server

the Stored procedure or function icon

Stored procedure or function

Synonym

Synonym

Table

Table

Table Type

Table Type

Tablespace

Tablespace

Trigger

Trigger

User

User

User Mapping

User Mapping

Variable

Variable

View

View

Virtual column

Virtual column

Virtual foreign key

Virtual foreign key

Virtual view

Virtual view

Virtual Table

Virtual Table

Possible icon combinations for columns

Icon

Foreign key

Primary key

Indexed

NOT NULL

Column

Column with a foreign key

Has a foreign key

Column with a primary key

Has a primary key

Indexed column

Indexed

Column that does not accept NULL values

Has the NOT NULL constraint

Indexed column that does not accept NULL values

Indexed

Has the NOT NULL constraint

Indexed column with primary and foreign keys that does not accept NULL values

Has a foreign key

Has a primary key

Indexed

Has the NOT NULL constraint

Indexed column with primary and foreign keys

Has a foreign key

Has a primary key

Indexed

Column with primary and foreign keys that does not accept NULL values

Has a foreign key

Has a primary key

Has the NOT NULL constraint

Column with primary and foreign keys

Has a foreign key

Has a primary key

Indexed column with a foreign key that does not accept NULL values

Has a foreign key

Indexed

Has the NOT NULL constraint

Column with a foreign key that does not accept NULL values

Has a foreign key

Has the NOT NULL constraint

Indexed column with a foreign key that accepts NULL values

Has a foreign key

Indexed

Indexed column with a primary key that does not accept NULL values

Has a primary key

Indexed

Has the NOT NULL constraint

Column with a primary key that does not accept NULL values

Has a primary key

Has the NOT NULL constraint

Indexed column with a primary key

Has a primary key

Indexed

01 December 2025
Database objectsDatabases
