Tutorial: deploy your application to a minikube cluster

The source code of the application is hosted on GitHub at https://github.com/spring-projects/spring-petclinic.

1. In the main menu, go to File | New | Project from Version Control….

2. Specify the URL of the repository and click Clone.

3. In the Open or Import Project dialog, select Gradle project to use Gradle as the main build system for the project.

4. If necessary, agree to open the cloned project in a new window.

Create an empty project with Node.js

1. Click New Project on the Welcome screen or select File | New | Project from the main menu.

2. In the dialog that opens, select Node.js in the left-hand pane.

3. Specify the location of the application and its name, for example, hello_world_docker.

4. Specify the local Node.js runtime to use. Accept the suggested installation or select another one from the list, or even click Download if you do not have Node.js on your machine yet. Learn more from Create a new Node.js application.



5. Click Create.

Populate the application

1. Let us create a separate folder for our application, this will help us later map local folders to folders in the container.

   To do that, open the Project tool window Alt+1, right-click the project folder, select New from the context menu, and then select Directory. In the popup dialog that appears, specify the name of the folder, for example, app.



2. Now it is time to create a JavaScript file to place the code of our application in.

   From the context menu of the app folder, select New from the context menu, and then select JavaScript File.



   In the popup dialog that appears, specify the name of the file, for example, hello_express.js.



3. Open the newly created hello_express.js file in the editor and type the following code:

   const express = require('express'); const app = express(); app.get('/', function(req, res) { res.send('Hello World!') }); app.listen(3000,function() { console.log('Example app listening on port 3000!') });

4. As you might have expected, the express reference is not resolved and highlighted as an error. However, IntelliJ IDEA suggests a quick-fix as you hover over the reference:



   When you click the Install 'express' link, express is added to the package.json file and installed.



Run the application locally

Let us run our application locally to make sure it works as expected.

• Open the hello_express.js file, right-click anywhere in the editor tab, and select Run 'hello_express.js' from the context menu.



  The Run tool window opens showing Example app listening on port 3000!.

  If you open the browser at http://localhost:3000, you will see that the page shows Hello World!, as expected.

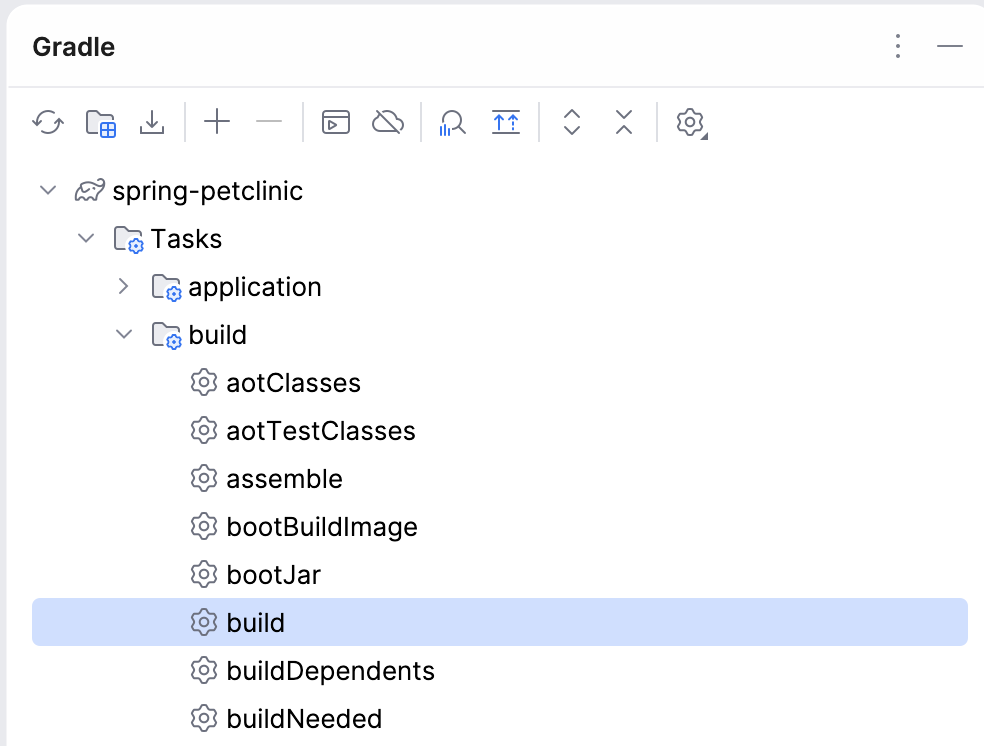

1. Open the Gradle tool window.

2. Expand the project node (spring-petclinic), then the Tasks node, and double-click the build task to run it.

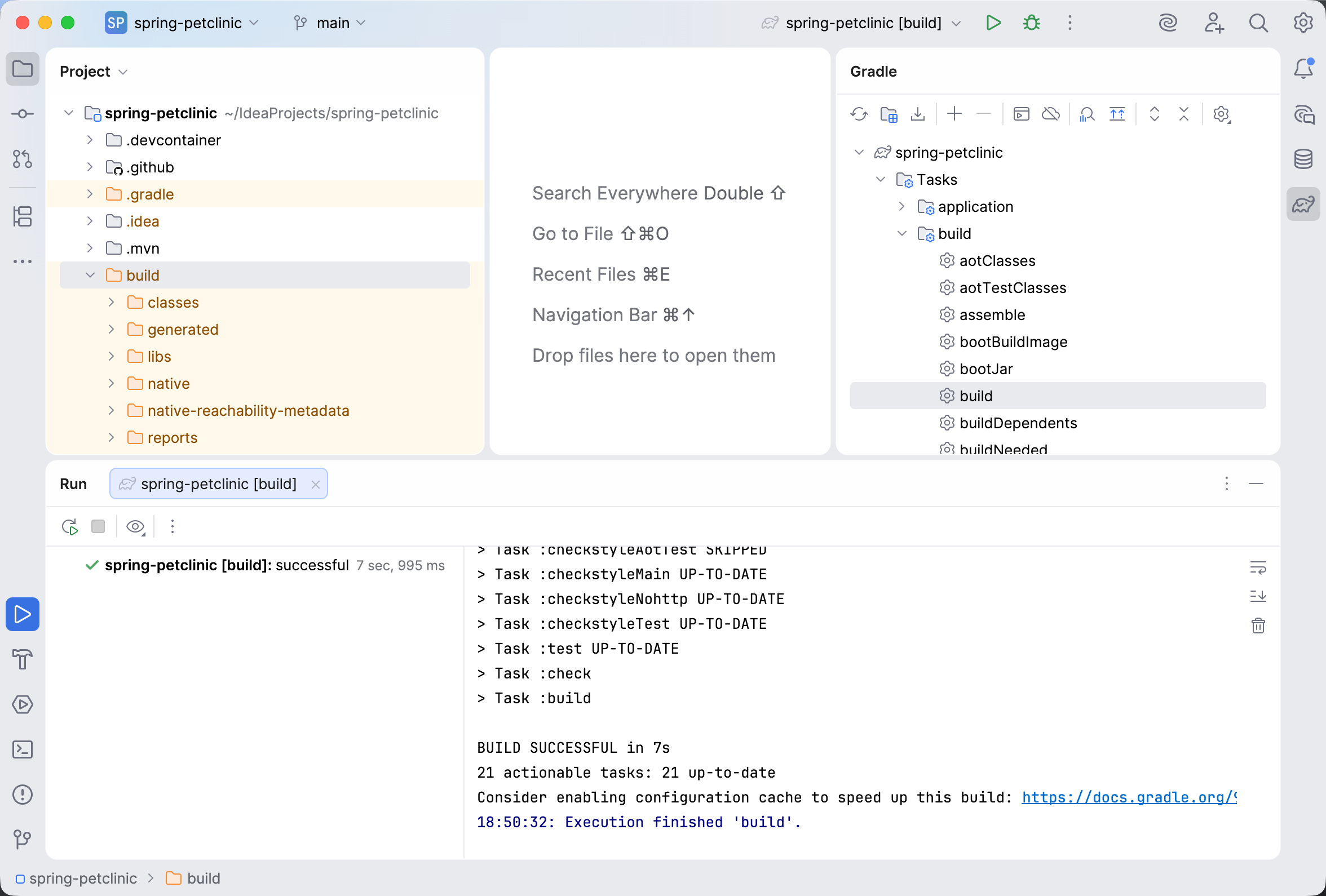

   Wait for IntelliJ IDEA to finish the task. As a result, the IDE creates the build directory with artifacts in the project root.



Create a Dockerfile

1. In the Project tool window Alt+1, right-click the project root, point to New, and click File.

2. In the New File… dialog, type Dockerfile and press Enter.

   If prompted, agree to add the file to Git.

3. Paste the following code to the new Dockerfile:

   FROM eclipse-temurin:17-jre WORKDIR /app COPY build/libs/*.jar app.jar EXPOSE 8080 ENTRYPOINT ["java", "-jar", "app.jar"]

Create a Dockerfile

1. From the context menu of the project folder, select New from the context menu, and then select Dockerfile.



2. Open the newly created Dockerfile and type the following code:

   FROM node:22-alpine WORKDIR /tmp COPY package*.json . RUN npm ci --omit=dev COPY ./app/ ./app/ CMD ["node","./app/hello_express.js"]

   This Dockerfile contains instructions for building an image based on the node:22 image from Docker Hub.

   When you run a container from this image, Docker sets copies the contents of the /app/ directory to the /tmp/app/ directory in the container (in our case, the /app/ directory contains the hello_express.js file). The package.json file is copied to /tmp/.

   Then Docker sets the current working directory to /tmp and runs node ./app/hello_express.js. As a result, the container log should show Example app listening on port 3000!.

Build the Docker image

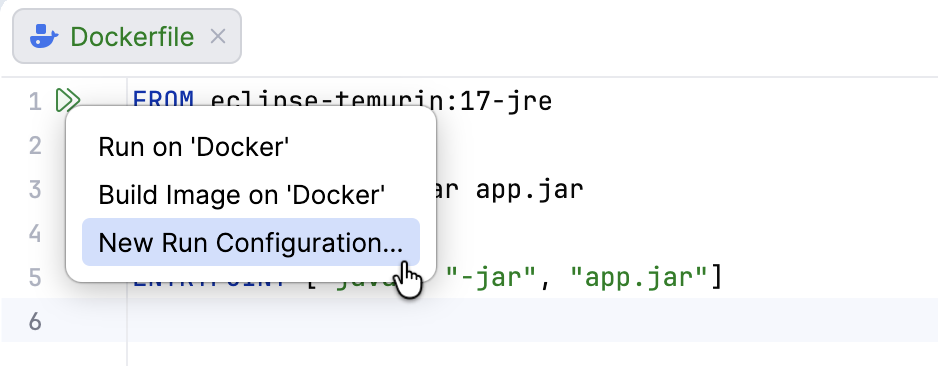

1. In the gutter inside the Dockerfile, click and select New Run Configuration.



2. In the Edit Run Configuration dialog, specify petclinic-app in the Image tag field and petclinic in the Container name field. Then, click Run.

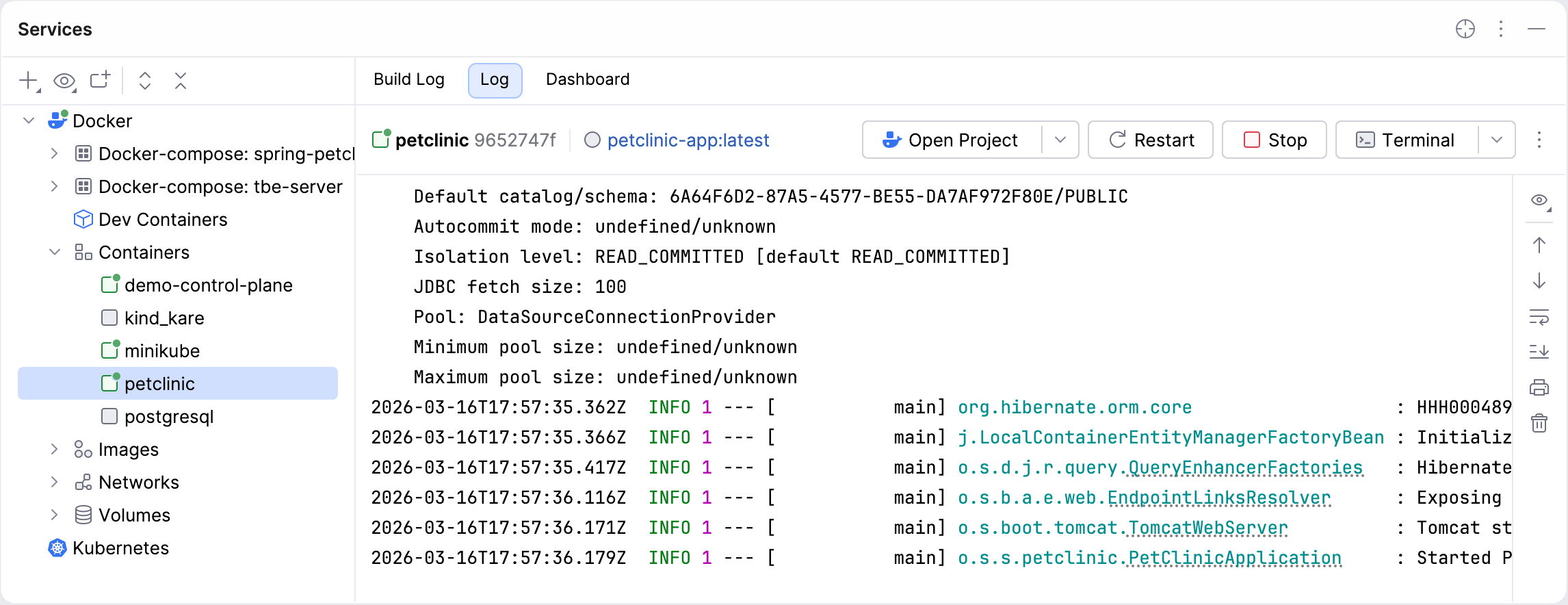

IntelliJ IDEA creates a Dockerfile run configuration, which builds an image from the Dockerfile and then runs a container based on that image. To follow the whole process, open the Log tab in the Services tool window.

Start minikube with the Docker driver

1. Open the Terminal tool window: go to View | Tool Windows | Terminal or press Alt+F12.

2. Run the following command to start a local Kubernetes cluster and instruct minikube to use Docker as the virtualization driver:

   minikube start --driver=docker

3. Verify that your cluster is up and running by using the command:

   minikube status

Add the minikube cluster to IntelliJ IDEA

1. Open the Services tool window: go to View | Tool Windows | Services or press Alt+8.

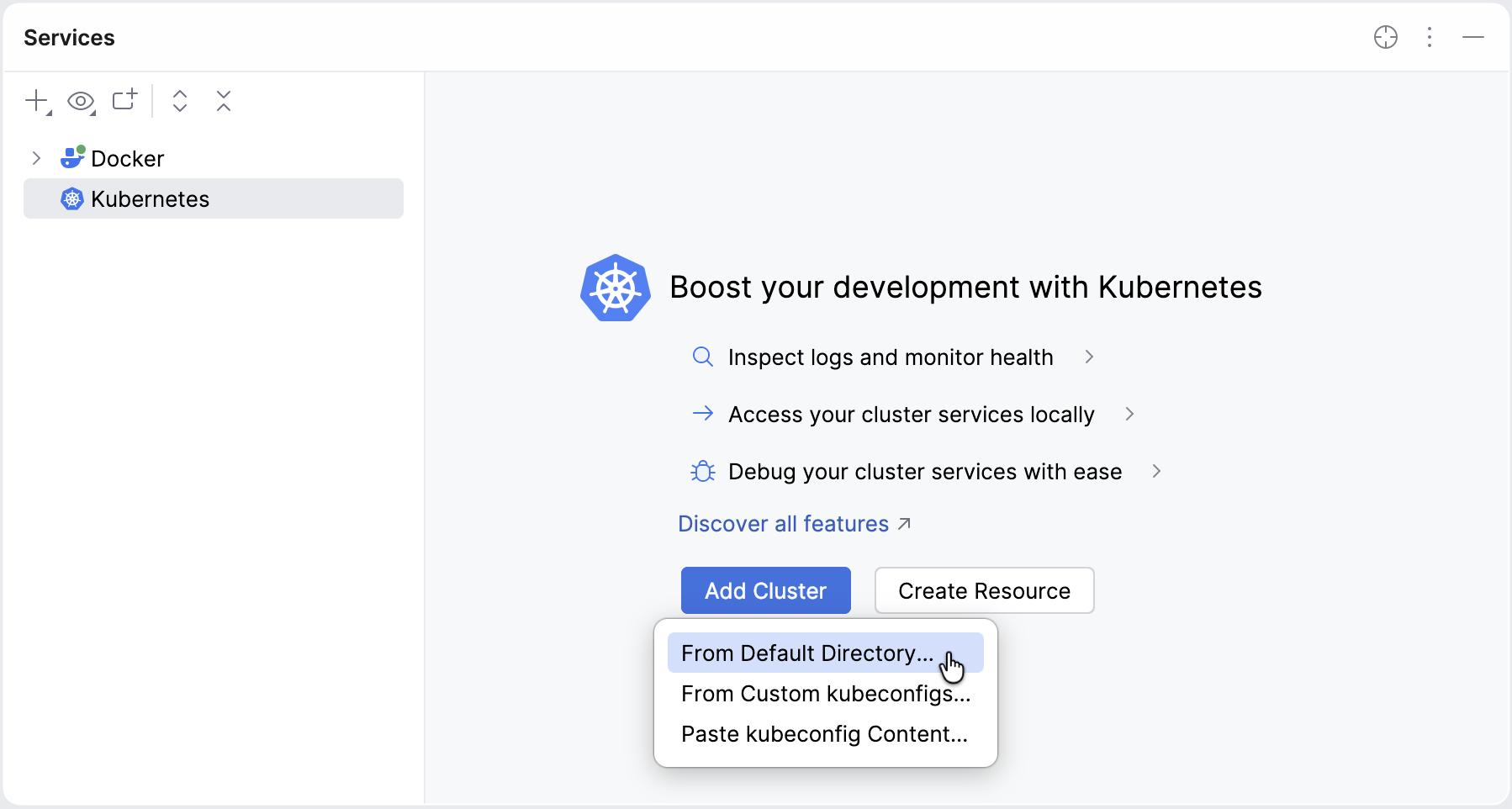

2. Select the Kubernetes node, click the Add Cluster button, and then select From Default Directory from the context menu.



3. In the Add Clusters dialog, select minikube and click Add Clusters.

   The added cluster will become available in the Services tool window.

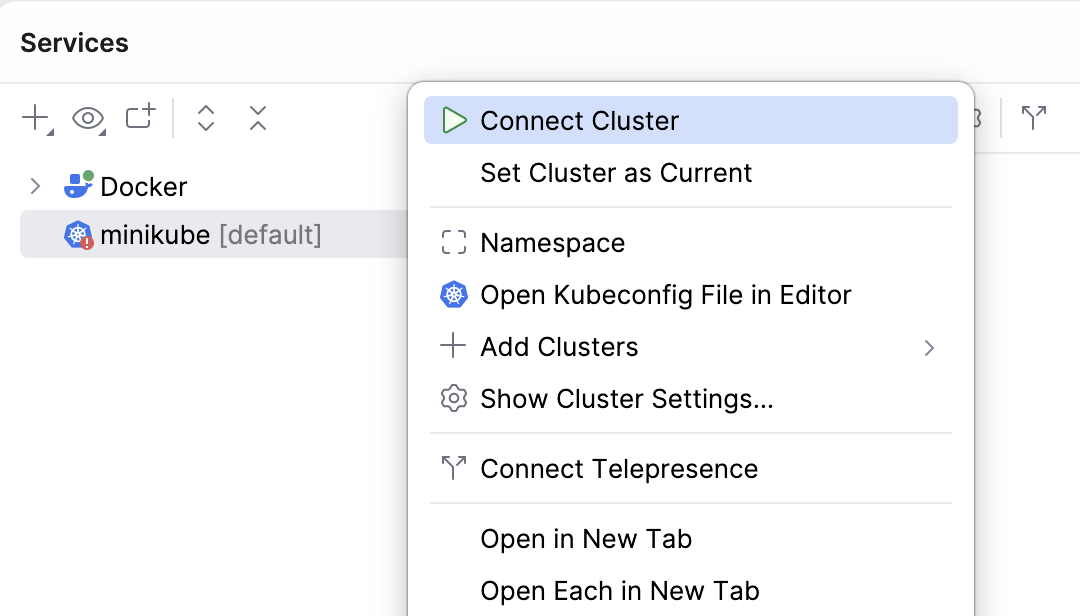

4. In the Services tool window, right-click the minikube cluster and select Connect Cluster.



Load the Docker image into minikube

1. Open the Terminal tool window: go to View | Tool Windows | Terminal or press Alt+F12.

2. Run the following command to build the container image in minikube:

   minikube image load petclinic-app

3. Validate that the petclinic-app image is available in your cluster by running:

   minikube image ls | grep petclinic-app

   You should see docker.io/library/petclinic-app:latest in the output.

Create a Deployment manifest

1. In the Project tool window (Alt+1) , right-click the project name and select New | Kubernetes Resource.

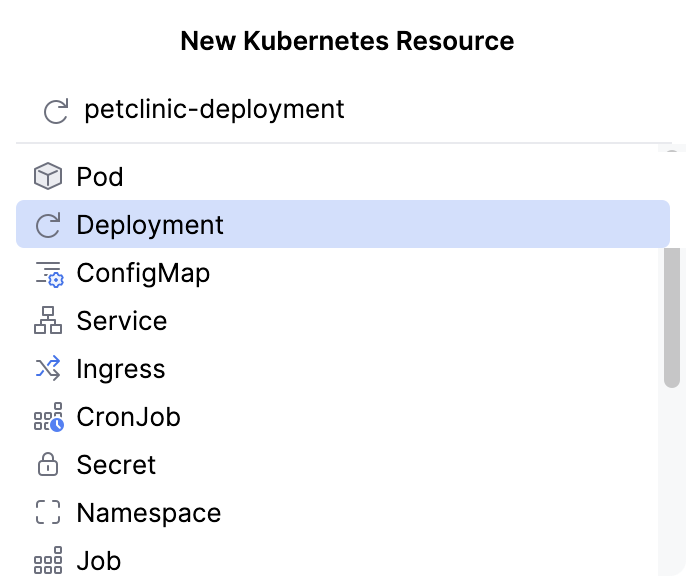

2. In the New Kubernetes Resource dialog, select the Deployment file type, specify petclinic-deployment as the manifest name, and press Enter.



   If prompted, agree to add the file to Git.

3. Replace the content of the resulting petclinic-deployment.yaml file with the following code:

   apiVersion: apps/v1 kind: Deployment metadata: name: petclinic spec: replicas: 1 selector: matchLabels: app: petclinic template: metadata: labels: app: petclinic spec: containers: - name: petclinic image: petclinic-app:latest imagePullPolicy: IfNotPresent ports: - containerPort: 8080

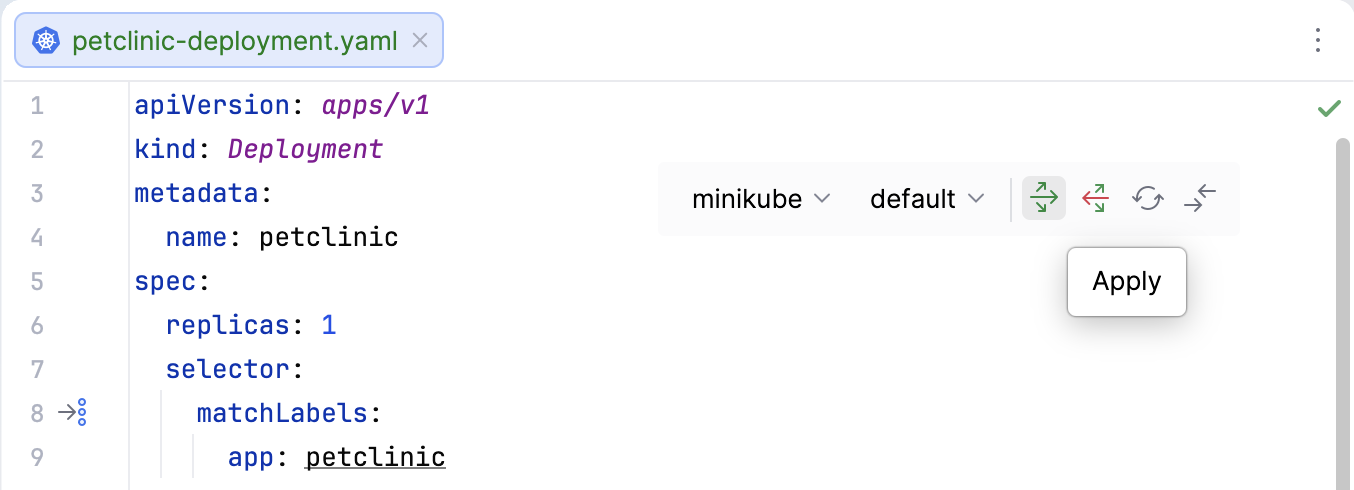

4. On the floating toolbar, select the current cluster and namespace, then click Apply to deliver the changes to the local cluster.



Create a Service manifest

1. In the Project tool window (Alt+1) , right-click the project name and select New | Kubernetes Resource.

2. In the New Kubernetes Resource dialog, select the Service file type, specify petclinic-service as the manifest name, and press Enter.

   If prompted, agree to add the file to Git.

3. Replace the content of the resulting petclinic-service.yaml file with the following code:

   apiVersion: v1 kind: Service metadata: name: petclinic spec: type: NodePort selector: app: petclinic ports: - port: 8080 targetPort: 8080

4. On the floating toolbar, select the current cluster and namespace, then click Apply to deliver the changes to the local cluster.

Access the application

1. Open the petclinic-deployment.yaml file in the editor.

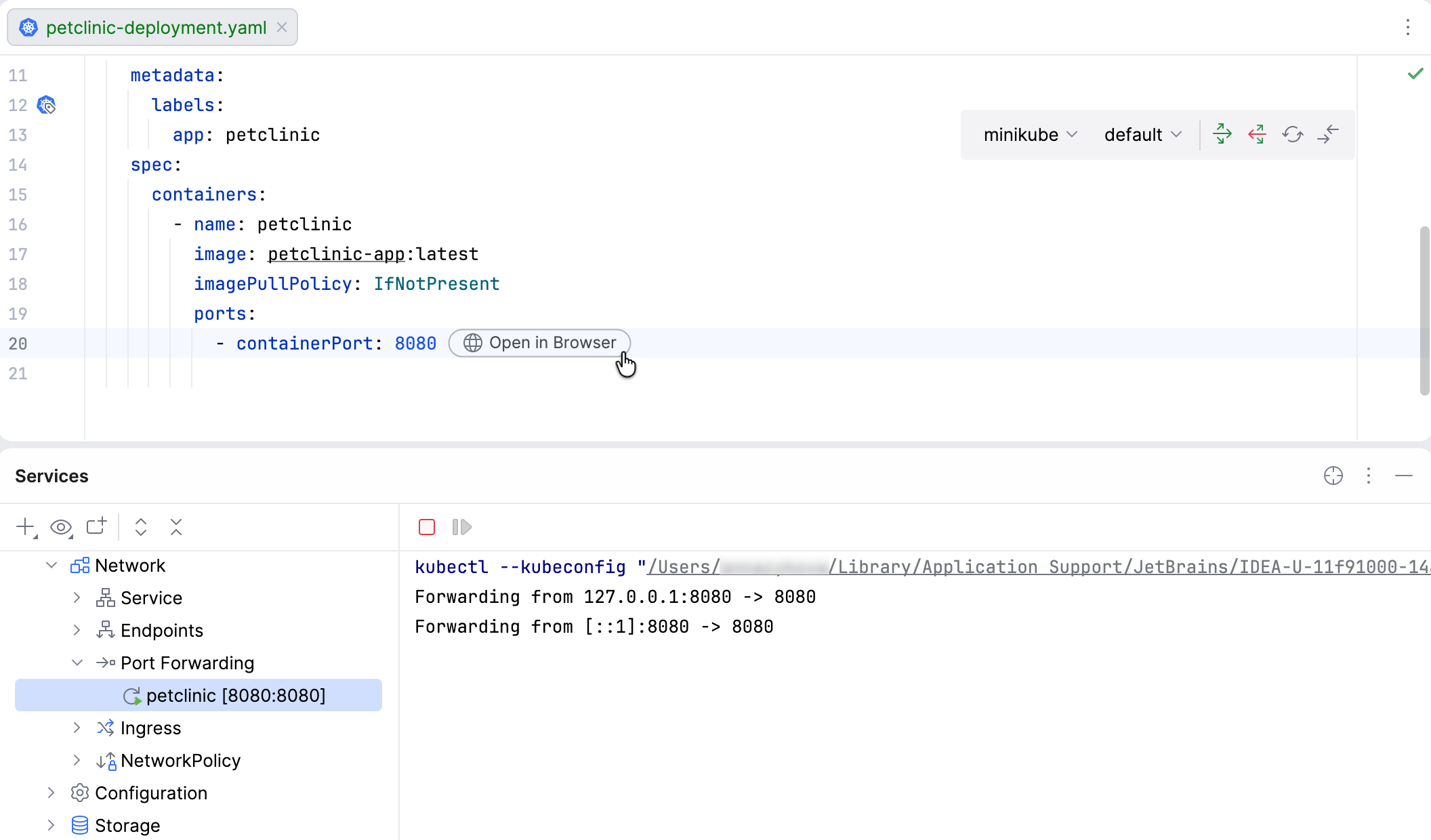

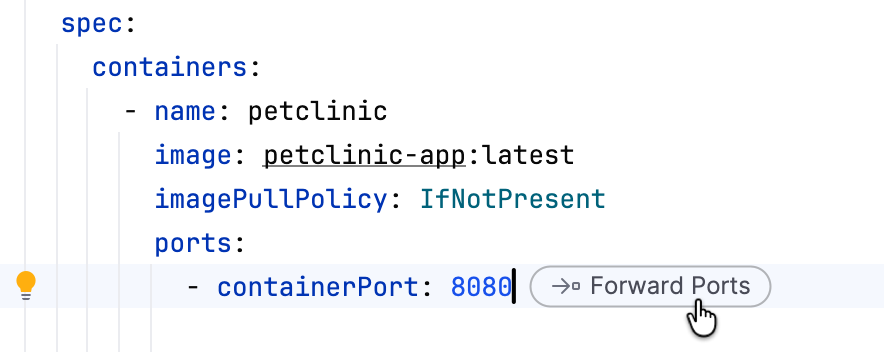

2. Click the Forward Ports inlay hint next to the - containerPort: 8080 property.



3. In the Forward Ports dialog, leave the default values and click Forward.

4. In the petclinic-deployment.yaml file, click the Open in Browser inlay hint.



   IntelliJ IDEA redirects you to your default browser, where you can check the Spring Petclinic application deployed in your local minikube cluster.
