Monitoring

Supported OSs and applications

Operating systems:

• Windows – full functionality including background profiling, automatic detection of performance issues, timeframe analysis, and more. Some features require a dotUltimate license.

• Linux and macOS – real-time data only. Background profiling and automatic detection of performance issues are not supported.

Applications:

• .NET Core 3.0 and later, .NET 5.0 and later

• .NET Framework (no info about counters, metrics, and exceptions)

• Mono (no info about counters, metrics, and exceptions)

• Unity (only CPU and memory charts are available)

• C++ (only CPU and memory charts are available)

• Unreal Engine (only CPU and memory charts are available)

Performance tab

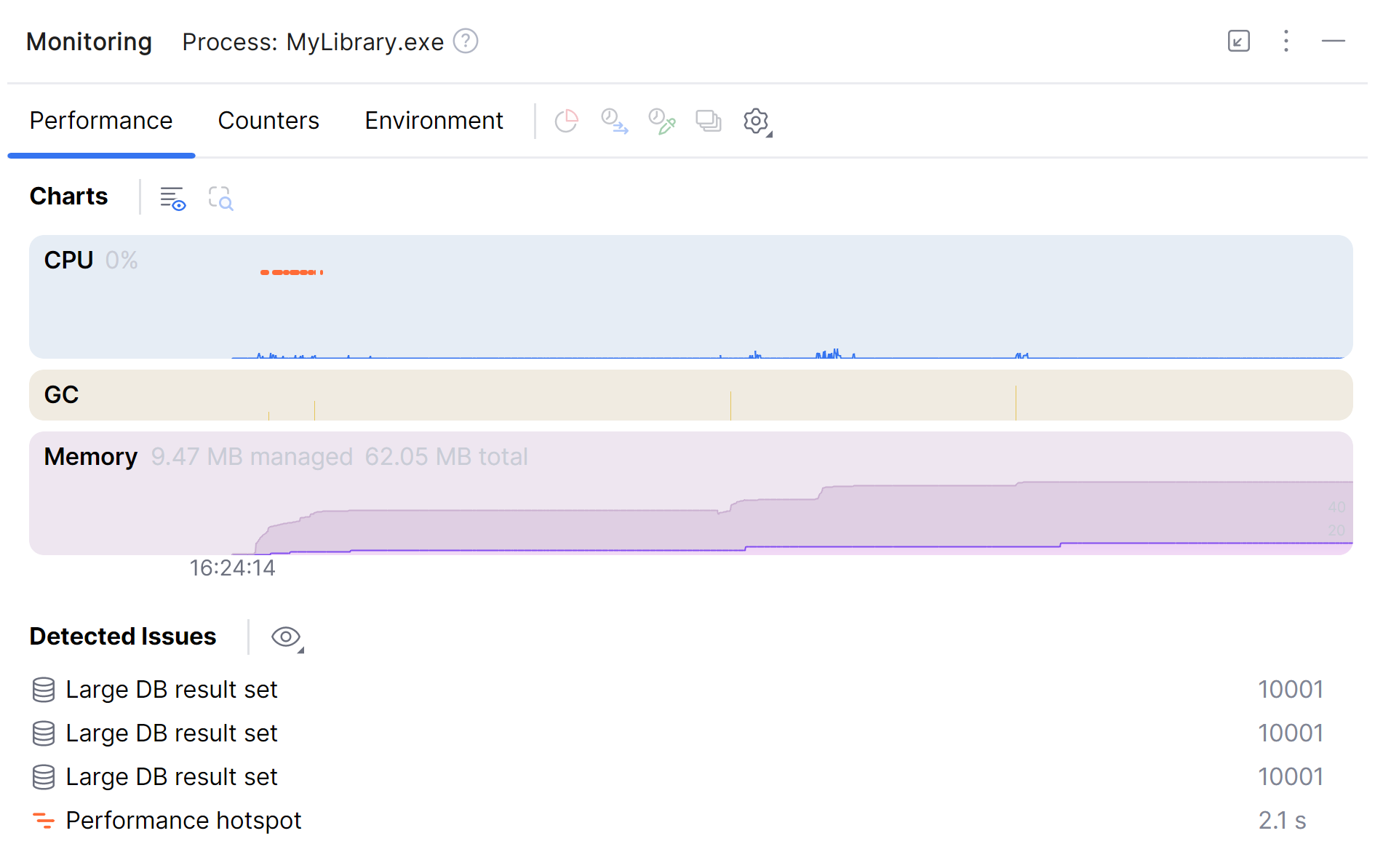

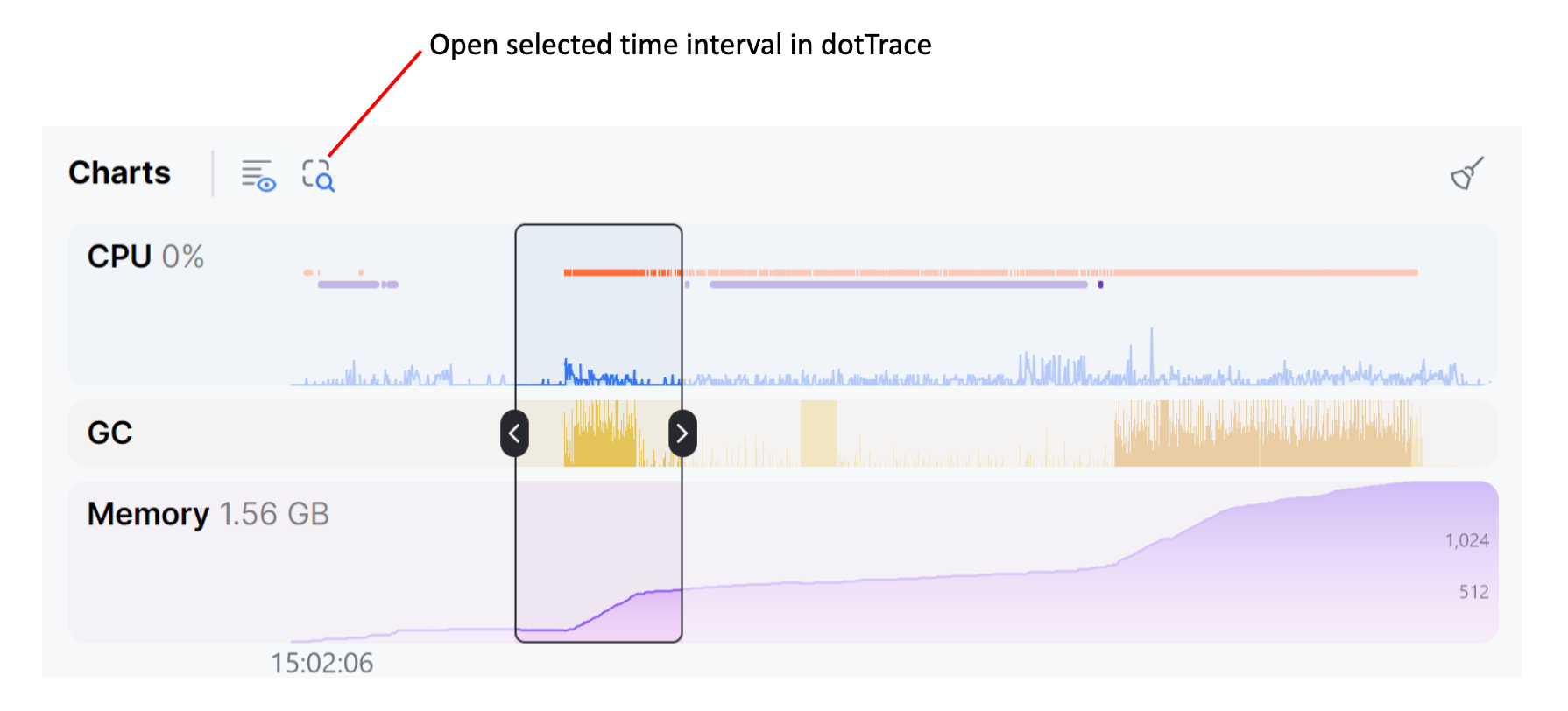

The Performance tab visualizes your application's runtime behavior using charts. On Windows, it also provides a list of detected performance issues and lets you analyze them in detail via the integrated dotTrace Profiler (dotUltimate license required).

Charts

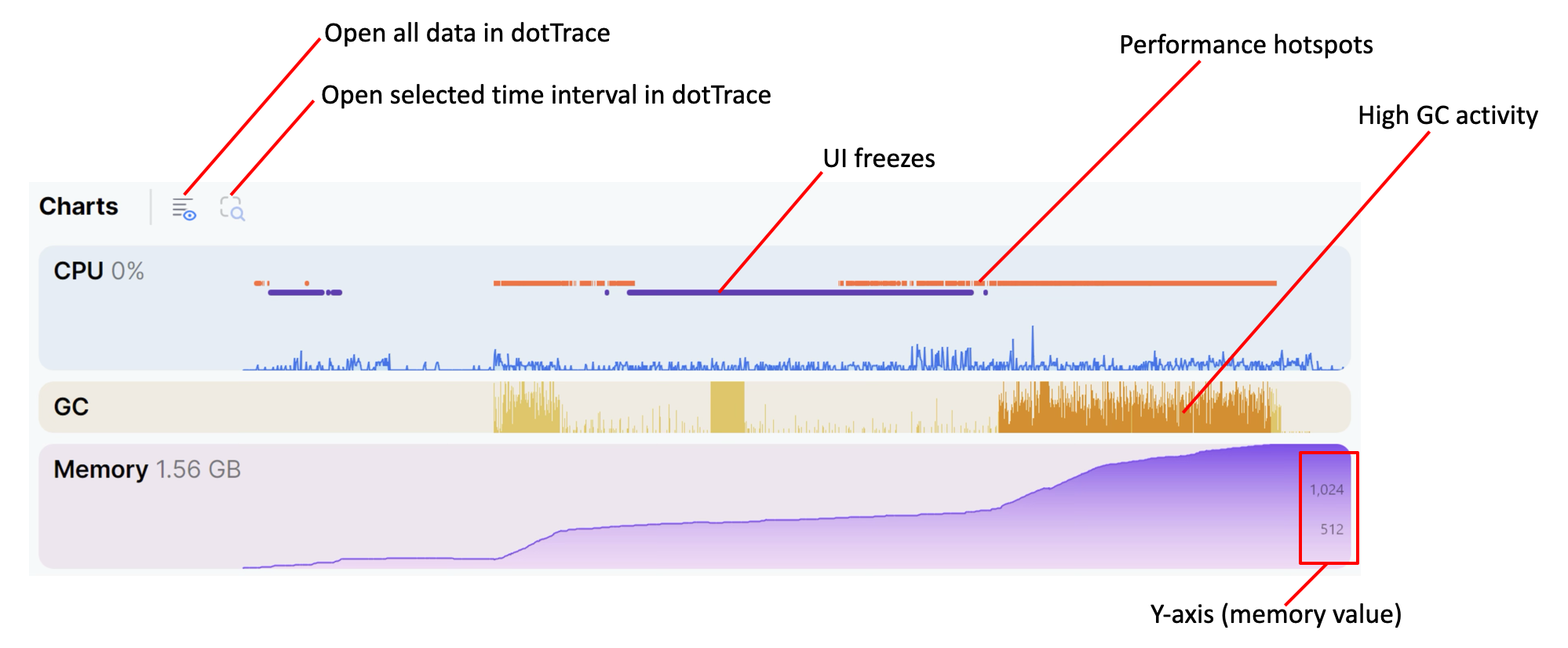

The Charts tab displays the CPU and memory usage of your application. If you hover over a chart, you can see detailed information about the data points.

• The CPU chart shows the CPU usage of your application and time intervals where the UI freeze and Performance hotspot issues were detected.

• The GC chart shows the garbage collection (GC) events in your application and time intervals where the High GC activity issue was detected.

• The Memory chart shows the memory usage of your application.

  How memory usage is calculated

  The Memory chart shows your process's private memory – memory committed for this process only and not shared with others.

  • Windows: The chart shows the process's Commit Charge value. It includes private pages (even if they are swapped out) and excludes pages shared with other processes, so it can be higher or lower than the "resident/working set" shown by other tools. The chart uses GetProcessMemoryInfo to get PROCESS_MEMORY_COUNTERS_EX.PrivateUsage.

  • Linux: The chart sums Private_Clean and Private_Dirty from /proc/<pid>/smaps_rollup (or from /proc/<pid>/smaps if the rollup file is unavailable).

  • macOS: The chart adds resident private bytes and swapped-out private bytes by iterating the process's memory regions (similar to what the vmmap tool reports).

  Because different tools visualize different metrics (private memory vs. resident/working set), it's normal if numbers don't match exactly across tools.

Detected Issues (Windows only)

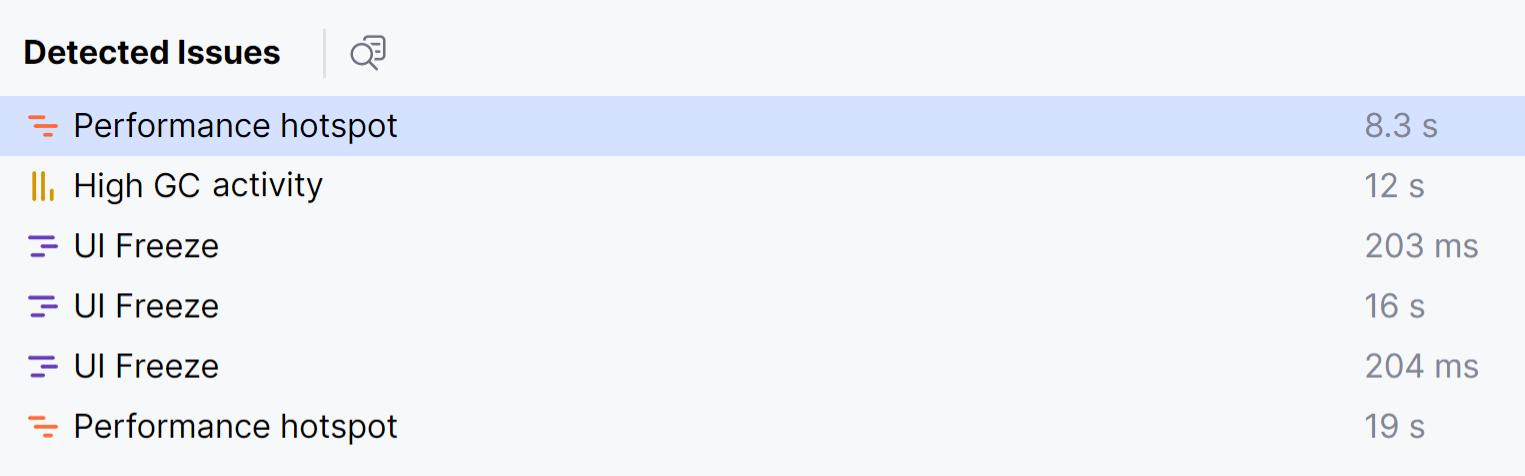

On Windows, the monitoring tool can automatically detect various types of issues in your application. You can analyze the detected issues in detail using the integrated dotTrace Profiler.

Learn more about the detected issues

Counters tab

The Counters tab displays counters and their values for all enabled counter and metric providers.

• Counters

  .NET counters are one of the ways to get performance data on your application. Most of the .NET system assemblies provide their own set of counters. For example, the base System.Runtime assembly includes such counters as CPU and memory usage, the number of garbage collections in particular heaps, lock contention count, thread pool queue length, and more. Microsoft.AspNetCore.Hosting provides counters that can be helpful for monitoring server applications: request rate, number of failed requests, and so on. Moreover, your application can provide its own custom counters with the help of EventCounters.

• Metrics

  Metrics is a more modern way to collect application data that supports various third-party providers like OpenTelemetry. .NET assemblies also provide their own set of metrics. For example, Microsoft.AspNetCore.Hosting provides metrics for request duration and current number of active requests. As well as counters, your application can provide its own custom metrics.

To add or remove providers, go to Settings | Build, Execution, Deployment | Monitoring | Counters and Metrics and configure the list of providers in Counter providers or Metric providers. When adding a provider:

• To add all counters/metrics from a provider, specify its name, e.g., MyProvider

• To add specific counters/metrics from a provider, specify the provider and the counter/metric names in the following format: ProviderName[CounterName1,CounterName2]. For example, OpenTelemetry.Instrumentation.Runtime[process.runtime.dotnet.gc.collections]

To define how often the counter and metric values must be updated (in seconds), use the Refresh interval parameter in Settings | Build, Execution, Deployment | Monitoring | Counters and Metrics.

Environment tab

The Environment tab displays environment variables and system properties of your application.

Monitoring modes

By default, monitoring starts automatically when you run or debug your project. You can change this behavior with the Enable Monitoring selector in the Monitoring tool window settings:

• On debug or run – monitoring starts automatically when you run or debug your project.

• On debug – monitoring starts automatically only when you debug your project.

• Never – monitoring is disabled.

Get profiling data

Sometimes, data collected by the monitoring tool is not enough to analyze the performance of your application. For a more detailed analysis, you can get profiling data (e.g., start a performance profiling session or get a memory snapshot) right from the Monitoring window's toolbar:

• Collect stack trace – get a stack trace of the application. The stack trace will be automatically opened in the Stack Trace Explorer. This might be helpful, for example, when you encounter unexpected UI freezes and want to investigate potential thread locks.

• Get memory snapshot – instantly get a memory snapshot of your application. Once the snapshot is collected, it will be opened in the dotMemory Profiler tool window.

• Start sampling profiling | Start timeline profiling – start a performance profiling session using the timeline or sampling profiling type. To stop recording the profiling data and save a performance snapshot, click the button. The collected snapshots will be opened in the dotTrace Profiler tool window.
